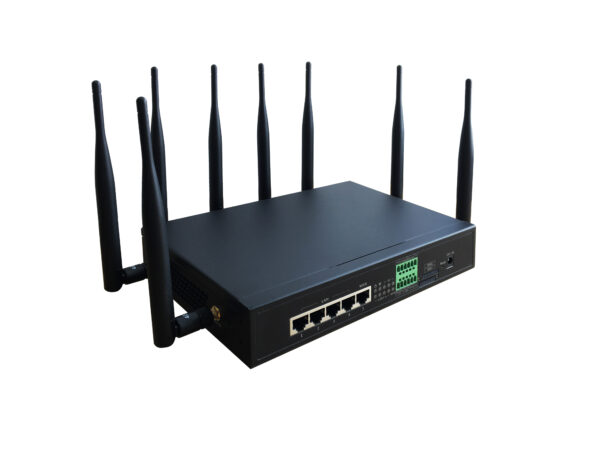

Dual Sim Dual 4G/5G Module Wi-Fi Router_U7622-02

Specifications

Chipset	CPU: MTK MT7622 ARM CA53 (1.35GHz, Dual-core) RTL8367S 5-Ports 100/1000Mbps Switch Chip
System Memory	Default DDR3 512Mbyte (Optional 256Mbyte/1Gbyte)
Nor Flash EMMC	Default 16Mbyte (Optional 8/32/64Mbyte) Optional 8Gbyte EMMC
Expansion	2x M.2 LTE/5G Module with a SIM card 1x MINIPCIE for WIFI or other application 1x SATA3.0 connector 1x RS485/RS232/GPIO connector 1x TF Card Slot
Wireless	2.4GHz 4T4R 574Mbps, B mode@21dBm(Max)
Wired Interface	5x Gigabit 1WAN+4*LAN
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	10W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range for 1x LTE/5G module 34W(Max), 12V@3A in full range for 2x LTE/5G module
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 230x149x42.82mm

MT7622 Block Diagram



Board Block Diagram





Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more

detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 256Mbyte/1Gbyte DDR3	Supported
Nor Flash/EMMC	Change to 8/32/64Mbyte Nor Flash or 8Gbyte EMMC	Supported
LTE/5G Module	Select the right M2 LTE/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7622-02	16Mbyte Nor Flash and 512Mbyte DDR3 RAM
