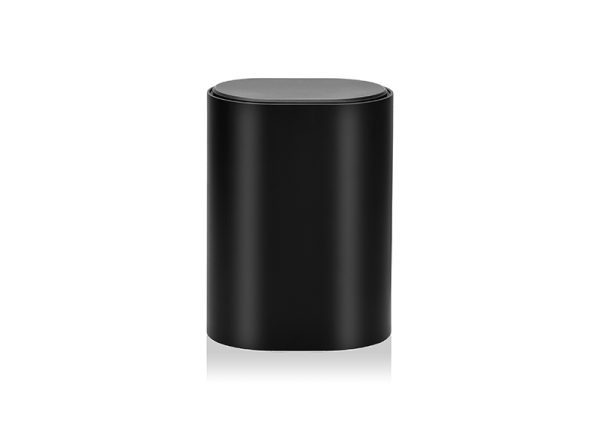

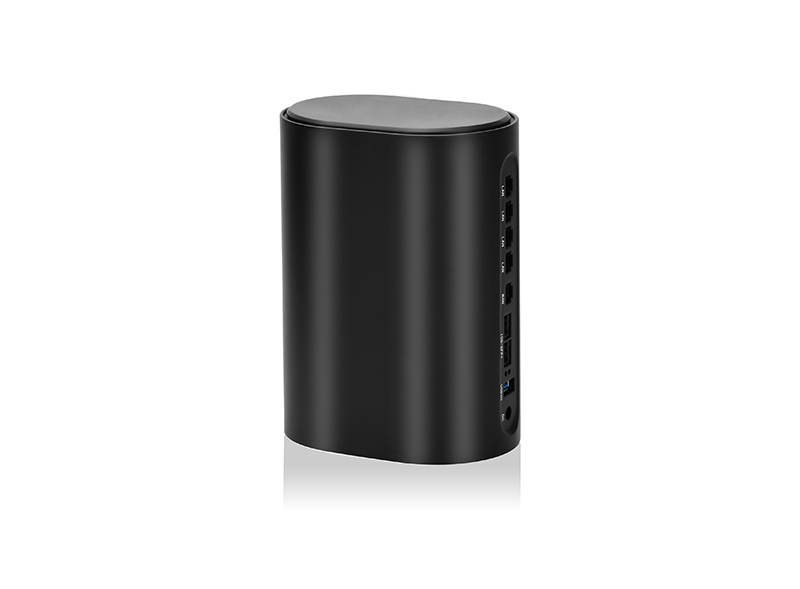

AX3000 Dual Band Gigabit Wi-Fi 6 Router with One Sim 5G/4G Module_U8071-20

Highlight Features

  • Quad ARM Cortex A53s @ 1.0 GHz
  • Wi-Fi 6 AX3000 platform, Wi-Fi 5G 4×4 11ax and Wi-Fi 2.4G 2×2 11ax
  • Optional LTE /5G application
  • Industry iron case with removable SMA antennas

Contact us for the stock and customized requirements!

Product Details:

Specifications

Chipset CPU: Qualcomm IPQ8071(Optional IPQ8072/IPQ8070)

2.4GHz AX Chip: Qualcomm 2X2; SINGLE-BAND; 802.11AX QCN5024

5GHz AX Chip: Qualcomm 4X4; SINGLE-BAND; 802.11AX QCN5054

Ethernet 5 Giga port switch: Qualcomm QCA8075

Power management: PMP8074

System Memory Default DDR3-2400 512Mbyte (Optional 256Mbyte)
NAND Flash Default NAND Flash 256Mbyte (Optional 128Mbyte)
Expansion 1x 5G/LTE Module with a SIM card
Wireless  MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6

2.4GHz 2T2R 600Mbps, B mode@25dBm(Max)

5.8GHz 4T4R 2400Mbps, A mode@24dBm(Max)

Wired Interface 4x Gigabit 1*WAN+3*LAN
Reset Button 1x Factory Restore Button (GPIO)
DC Power 1x DC Jack Connector (Default 12V@1.5A)
Power Consumption 10W (Max), 12V@1.5A without Expansion

24W(Max), 12V@2A in full range

Software Qualcomm QSDK which includes Uboot, Kernel and Tool Chain
Environmental Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC

Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

Case Material: Plastic, Dimensions: 130x95x165mm

IPQ8071 Block Diagram

Board Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more

detailed info.

Name Customization Comments UniElec Customization
Memory Change to 256Mbyte DDR3 Supported
Nand Flash Change to 128Mbyte NAND Supported
3G/4G/5G Module Select the right M2 5G/LTE module for your application Supported
Case Select the different case material for your application Supported

Ordering Information

Models Comments
U8071-20 256Mbyte NAND Flash and 512Mbyte DDR3 RAM
