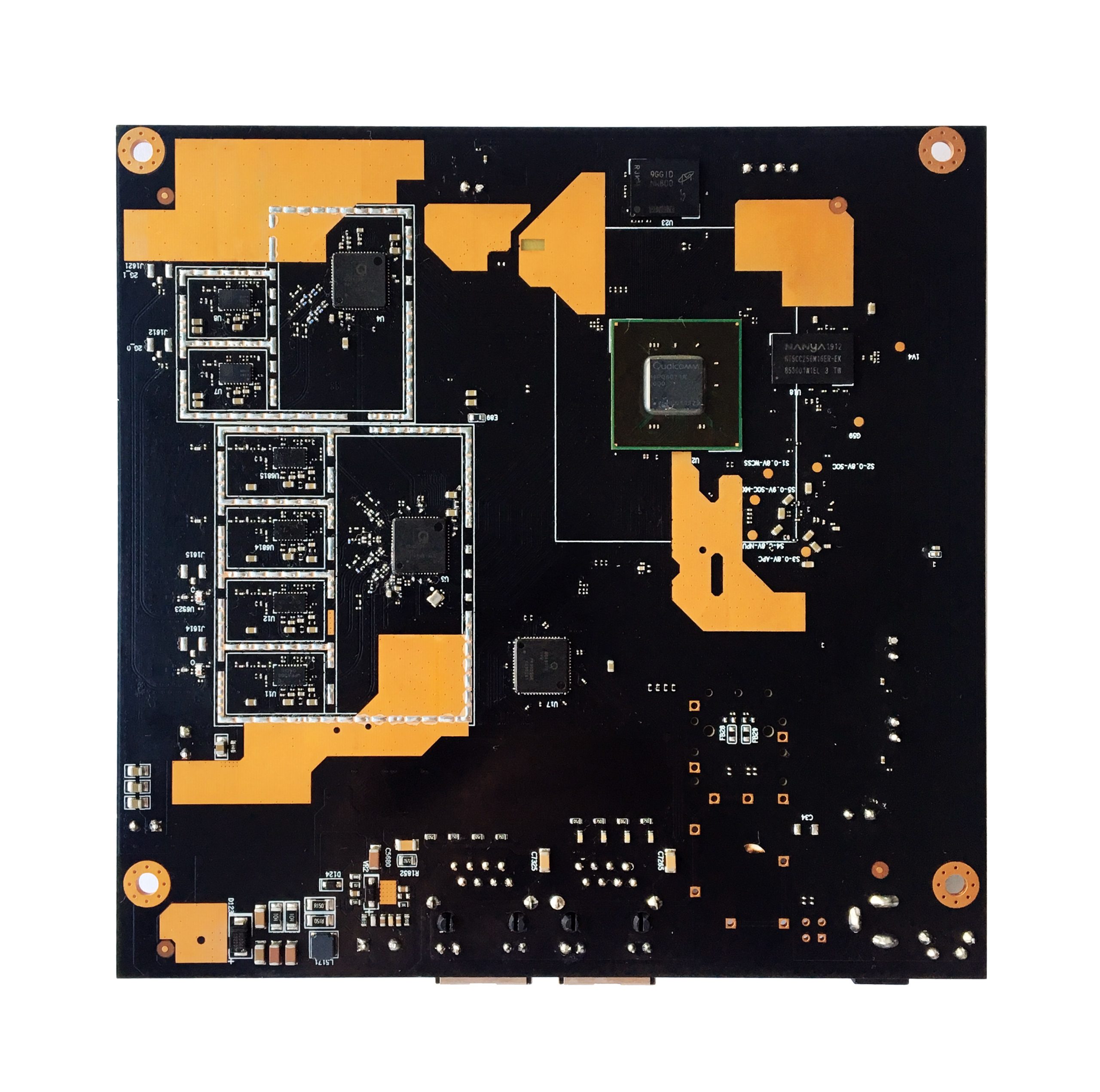

AX3000 Dual Band Gigabit AP_U8071-03

Specifications

Chipset	CPU: Qualcomm IPQ8071(Optional IPQ8072/IPQ8070) 2.4GHz AX Chip: Qualcomm 2X2; SINGLE-BAND; 802.11AX QCN5024 5GHz AX Chip: Qualcomm 4X4; SINGLE-BAND; 802.11AX QCN5054 Ethernet 5 Giga port switch: Qualcomm QCA8075 Power management: PMP8074
System Memory	Default DDR3-2400 512Mbyte (Optional 256Mbyte)
NAND Flash	Default NAND Flash 256Mbyte (Optional 128Mbyte)
Expansion	1x 10G SFP Slot
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 600Mbps, B mode@25dBm(Max) 5.8GHz 4T4R 2400Mbps, A mode@24dBm(Max)

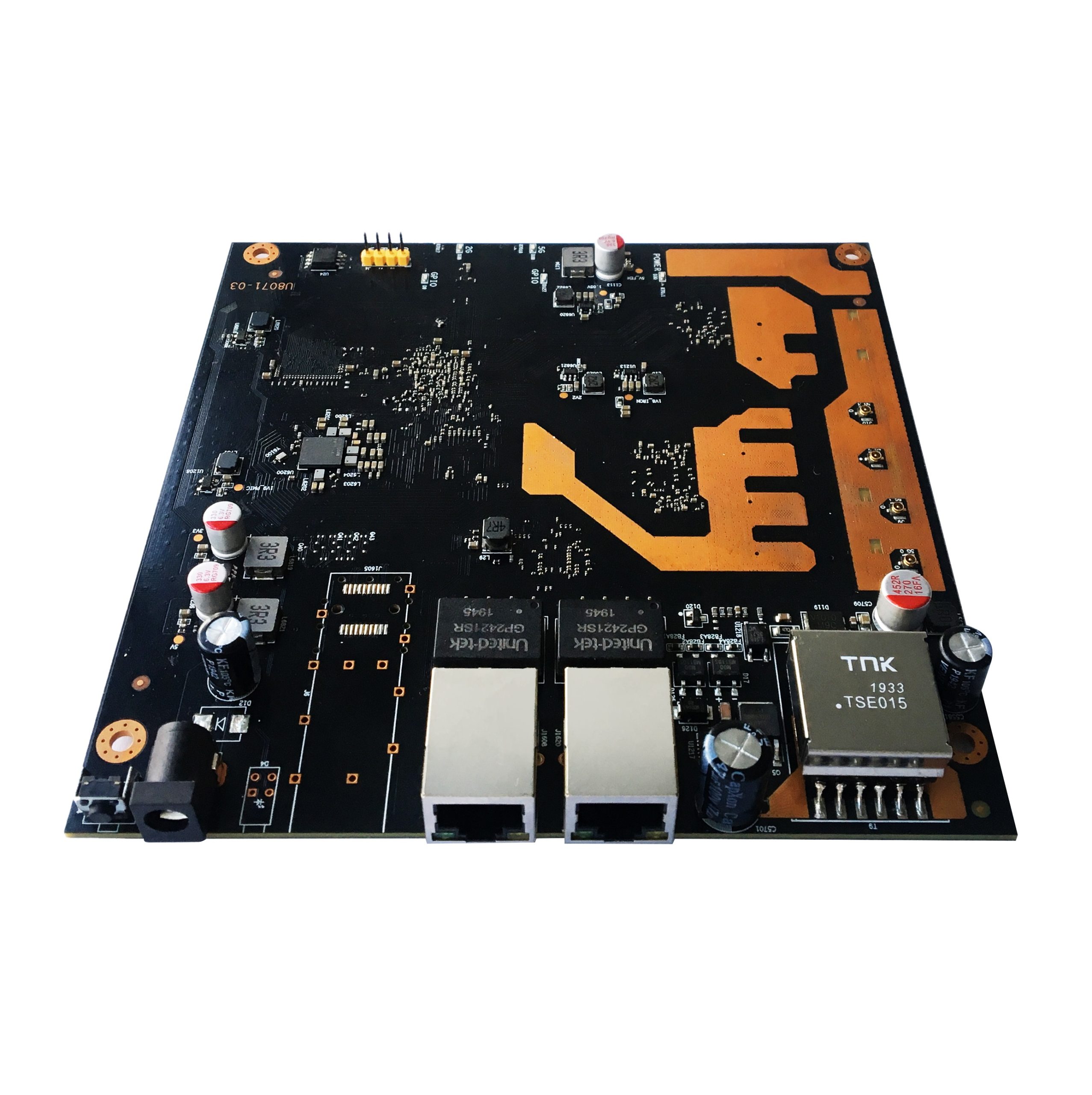

Wired Interface	1* WAN Giga with POE PD 25W Support (802.3at & af standard) 1* LAN Giga Ethernet RJ45 Port
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@2A)
Power Consumption	20W(Max), 12V@2A in full range
Software	Qualcomm QSDK which includes Uboot, Kernel and Tool Chain
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%

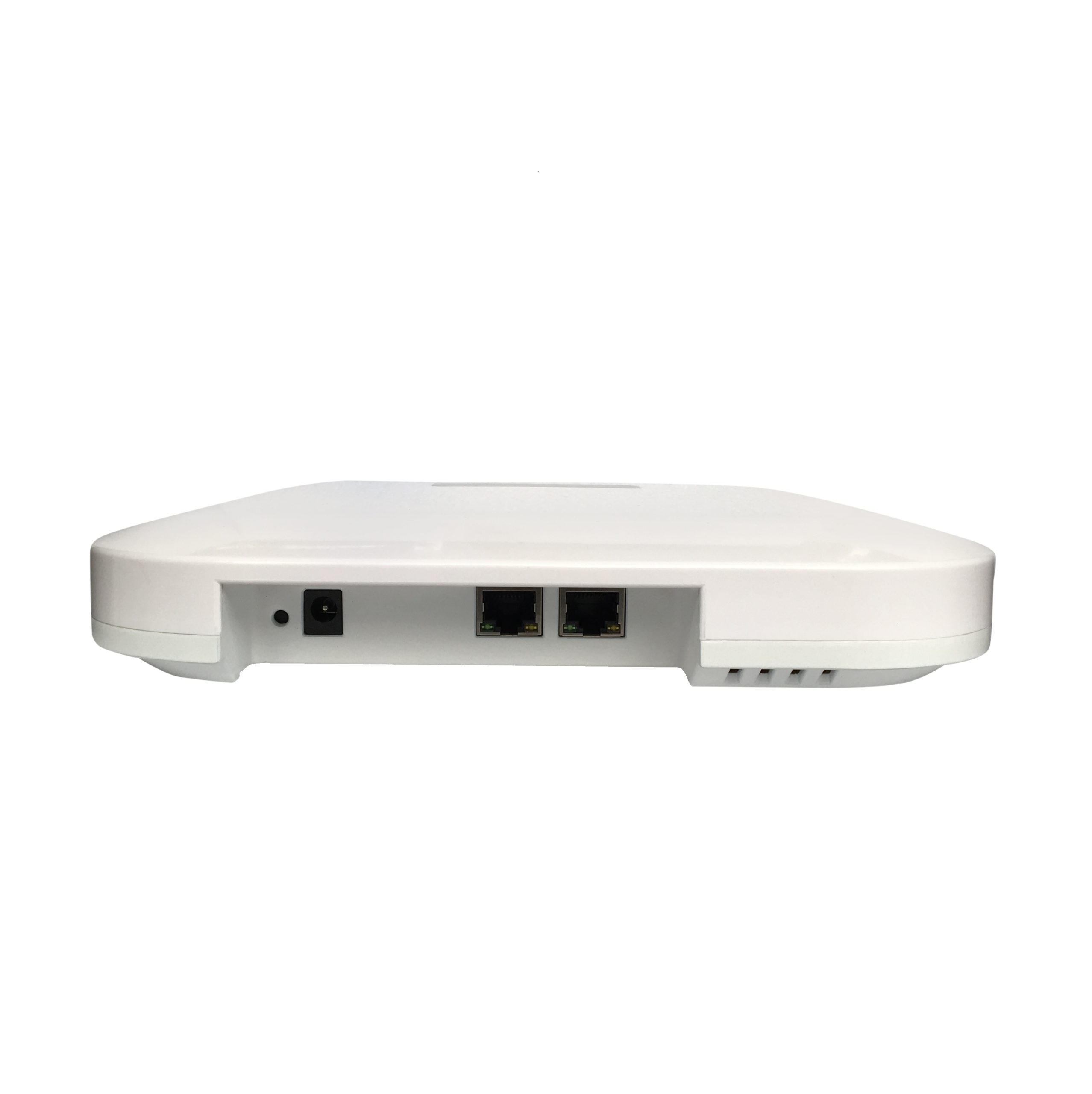

Case	Material: Aluminium Alloy, Dimensions: 220x220x35mm (±2mm)

IPQ8071 Block Diagram

Board Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more

detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 256Mbyte DDR3	Supported
Nand Flash	Change to 128Mbyte NAND	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U8071-03	256Mbyte NAND Flash and 512Mbyte DDR3 RAM
