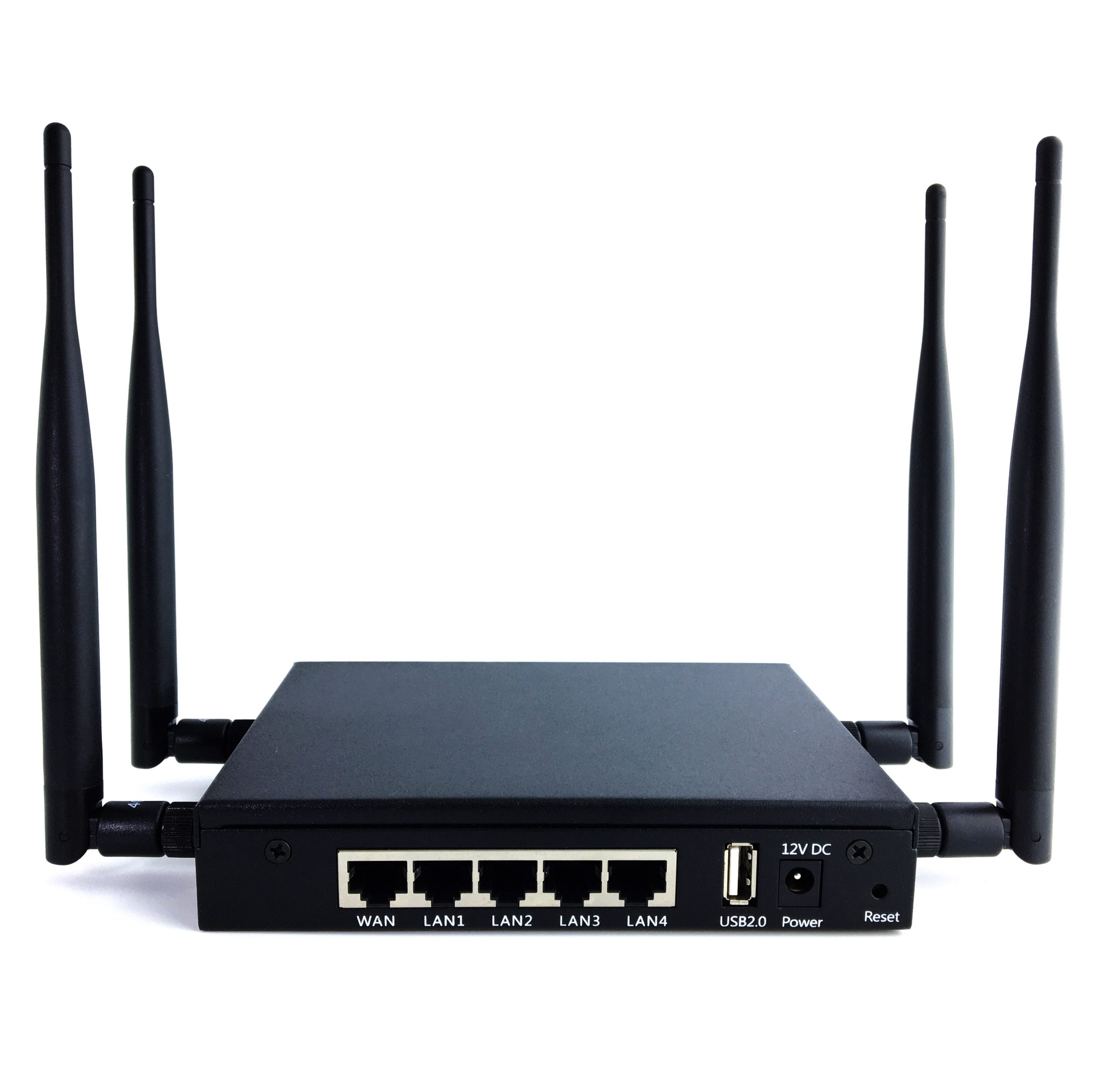

AX1800 Dual Band Gigabit Wi-Fi 6 Router with One Sim 4G/5G Module_U7621-01-AX

Specifications

Chipset	CPU: MTK MT7621A dual-core MIPS1004K (880MHz) WIFI6: MTK7975DN+MTK7905DAN
System Memory	Default DDR3 256Mbyte (Optional 512Mbyte)
Nor Flash	Default 16Mbyte (Optional 8/32/64Mbyte)
Expansion	1x 4G/5G Module with a SIM card 1x USB2.0 connector 1x TF Card Slot
Wireless	MU-MIMO 802.11a/b/g/n/ac/ax WiFi 6 2.4GHz 2T2R 574Mbps, B mode@21dBm(Max) 5.8GHz 2T2R 1201Mbps, A mode@20dBm(Max)
Wired Interface	5x Gigabit 1*WAN+4*LAN(Auto MDI-X)
Reset Button	1x Factory Restore Button (GPIO)
DC Power	1x DC Jack Connector (Default 12V@1A)
Power Consumption	9 W(Max),12V@1A without Expansion 24W(Max), 12V@2A in full range
Software	MTK OpenWrt which includes Uboot, Kernel, Driver and Tool Chain Normal OpenWrt
Environmental	Temperature: Operating: 0ºC to 50ºC, Storage: -40ºC to 90ºC Humidity (non-condensing): Operating: 5% to 95%, Storage: Max. 95%
Case	Material: Iron, Dimensions: 155x111x30mm

MT7621 Block Diagram



Board Block Diagram

Customization Options

UniElec have engaged in providing global customers with professional ODM/OEM service of customized stable and

cost-effective electronic products. We can customize total production for the customer including Chassis, Hardware,

Software and Package as below customization options for this product. Contact us at sales@unielecinc.com for more

detailed info.

Name	Customization Comments	UniElec Customization
Memory	Change to 512Mbyte DDR3	Supported
Nor Flash	Change to 8/32/64Mbyte	Supported
4G/5G Module	Select the right M2 4G/5G module for your application	Supported
Case	Select the different case material for your application	Supported

Ordering Information

Models	Comments
U7621-01-AX	16Mbyte Nor Flash and 256Mbyte DDR3 RAM
